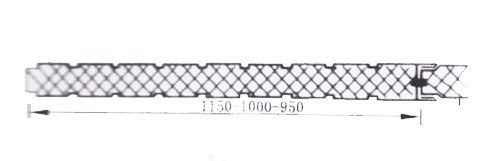

¡¡Product name£º EPS self-insert sandwich panel for wall

EPS²å½Óʽ¼ÐоǽÃæ°å


        That the Dylene foam grips a core band is that steel plate assumes supercrust from colour , shut a hole being used for a core from putting out the type Dylene foam material, once grow compound late-model high-effect building material by the fact that continuous automation molding machine presses colourful steel plate use high-strength structural adhesives after the type but able, the roof covering , wall applying to public works , the industry workshop building mainly compose in reply cleanly a workshop building as well as constituting cold storage , building storey , business pavilion etc. , it has preserve heat , water-proof speed characteristics such as quick , durable , artistic but unaffected being completed , being under construction. Styrofoam that my company produces grips core band various forms such as mark of style , ladder type being that montage is dyadic , grafting style , concealing style and biting a mouth. Technical data 1ºñ¶È£¨mm£©£º40¡¢50¡¢75¡¢100¡¢200¡¢250
 2 length (mm): Be inadvisable to exceed 12000 like being confined to transportation condition         Product use: The workshop building , storehouse , cold storage , cabin or ship hold , original building building the villa , industry add a tier wait for a project, to be put into use in any building nimbly.

Heat passage modulus K (specification in common use)

Unnatural thicknessmm 50 75 100 150 200
W/m2K 0.663 0.442 0.330 0.220 0.166
Kcal/m2*h*¡æ 0.570 0.380 0.280 0.190 0.143

Share sound insulation amounts

Unnatural thicknessmm 50 75 100
R(dB) 20.0 21.50 23.0

Mechanics function
