Product description

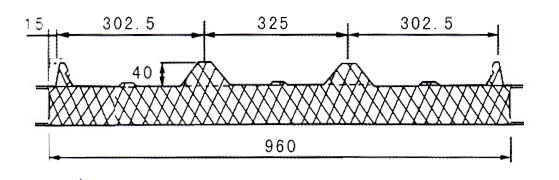

Color rock wool laminboard (rock wool composite with color just pressure xingban for surface structure rock wool as the core layer, use special binder compound and into a "sandwich" structure board

thickness（mm）     75     100     120     150     200     The length（mm）     thickness（mm）     75     100     120     200     Jose load（KN/M2）     0.5     3.6     4.2     4.8     5.5     1.0     3.1     3.7     4.3     5.2     1.5     2.7     3.3     3.8     4.6     2.0     2.4     3.0     3.7     4.3

   Any length, limited to transport condition, general≤12000

weight

thickness（mm）	75	100	120	150
Board heavy（KN/m2）	0.263	0.301	0.338	0.391

Heat transfer coefficient K (common specifications)

thickness（mm）	50	75	100	120	150	200
Heat transfer coefficientw/m2k	0.749	0.530	0.411	0.327	0.268	0.210
kcal/m2h℃	0.644	0.456	0.353	0.281	0.230	0.181

Mechanical properties
