¡¡Product name£º YX51-240-720 type combined floor decking


Steel plate thickness Prop up condition load£¨kn/m2£©
0.5 1.0 1.5 2.0
0.6 Cantilever 1.9 1.5 1.3 1.2
Continuation 4.8 3.8 3.3 3.0
0.75 Cantilever 2.1 1.7 1.4 1.3
Continuation 5.4 4.3 3.7 3.4
1.0 Cantilever 2.3 1.8 1.6 1.4
Continuation 5.9 4.7 4.1 3.7
1.2 Cantilever 2.5 2.0 1.7 1.6
Continuation 6.4 5.1 4.4 4.0
The section steel building pressure is indebted to paper of for adopt zinc plating steel plate to go through cold curved roll-in molding , it's cross section becomes the V type , U type , scalariform or similar this several kinds forms wave type , use work building to be indebted to paper of for, also but elected being mainly other use. Be board's turn to use work building to undertake the pulling a long of, it's characteristic is that the rapid , convenient time limit for a project being under construction is short , saves a reinforced bar , is used for a steel form simultaneously, have cost of construction is low , the intensity is advanced characteristic.

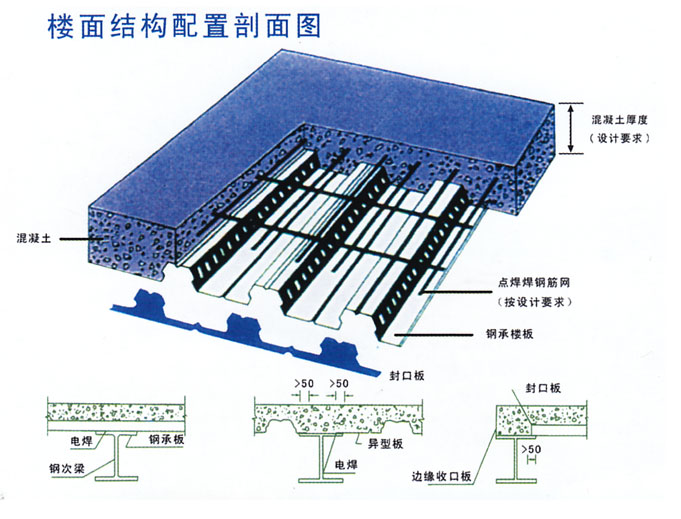

Constitute floor construction order
The surface eliminates
(1) steel girder clean, the steel floor solders according to row territory on the steel girder;
(2) melting welding on the steel girder according to soldering procedure , steel being undertaken the pulling a long of;
(3) steel is indebted to the button among paper of for jointly getting along being used to clamp giving fixation;
(4) compound wind beam places fix scissors nails with the welding gun;
(5) pushes down the net designing that the gang of request pricks a reinforced bar;
(6) carries out concrete potting;
